LLC Energopryladpostach expresses its sincere respect and offers cooperation in terms of supplying the following equipment: ELECTRICAL EQUIPMENT: 1. Transformers: - oil-filled ТМ, ТМЗ, ТМГ with a capacity of 25-4000 kVA; - dry with cast insulation "Geafol" 100-2500 kVA. 2. Complete transformer substations of various types and configurations (KTPM, KTPU-V, KTPU-K, KTPG, 2KTPGS). 3. High-voltage cells KSO. (6.10.35 kV). 4.KRUN series YAKNO. (Cell complete outdoor installation freestanding). 5. Panels of switchboards ShchO. 6. Complete switchgear switchgear. (6.10.35 kV) 7. Reactive power compensation capacitor units. 8.KTP TO-80. Transformer substation for heating concrete. 9. Diesel generator sets and uninterruptible power supplies. 10. Accumulator plants for industrial use. 11. Gas control equipment - hydraulic fracturing units; gas control cabinets for gasification of rural and urban settlements, communal facilities and industrial and agricultural facilities; Our company takes an individual approach to each customer and is happy to advise, if necessary, in choosing the optimal equipment configuration for the given parameters! Sincerely, Sales Manager of Energopryladpostach LLC Olga Kuprataya, t / f (0382) 64-14-29, Tel / Viber +38 (097) 129 94 21, +38 (097) 503 08 58 email: market- Energopryladpostach expresses its sincere respect and offers cooperation in terms of supplying the following equipment: ELECTRICAL EQUIPMENT: 1. Transformers: - oil-filled ТМ, ТМЗ, ТМГ with a capacity of 25-4000 kVA; - dry with cast insulation "Geafol" 100-2500 kVA. 2. Complete transformer substations of various types and configurations (KTPM, KTPU-V, KTPU-K, KTPG, 2KTPGS). 3. High-voltage cells KSO. (6.10.35 kV). 4.KRUN series YAKNO. (Cell complete outdoor installation freestanding). 5. Panels of switchboards ShchO. 6. Complete switchgear switchgear. (6.10.35 kV) 7. Reactive power compensation capacitor units. 8.KTP TO-80. Transformer substation for heating concrete. 9. Diesel generator sets and uninterruptible power supplies. 10. Accumulator plants for industrial use. 11. Gas control equipment - hydraulic fracturing units; gas control cabinets for gasification of rural and urban settlements, communal facilities and industrial and agricultural facilities; Our company takes an individual approach to each customer and is happy to advise, if necessary, in choosing the optimal equipment configuration for the given parameters! Sincerely, Sales Manager of Energopryladpostach LLC Olga Kuprataya, t / f (0382) 64-14-29, Tel / Viber +38 (097) 129 94 21, +38 (097) 503 08 58 email: market-
Make a safe deal with this supplier.
Apply
ООО Энергоприладпостач
Ukraine
Specify the price
Complete switchgears are & nbsp; for the reception and distribution of electrical energy with a frequency of 50 Hz with a voltage of 10 (6) kV & nbsp; with rated current of busbars 630,1000,1250,1600,2000,2500 and 3150А and operated in regions with a temperate climate (from -25 ° С to + 40 ° С). & nbsp;
Type of climatic modification U3 or T3 according to GOST 15150.
& nbsp; Normal operation of the switchgear is ensured under the following conditions:
& nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; 1. Altitude above sea level & ndash; no more than 1000 m;
& nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; 2.Environment & ndash; is not explosive, does not contain conductive dust, corrosive gases and vapors in concentrations that reduce the parameters of the KTP in unacceptable standards;
& nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; 3.Type of atmosphere & ndash; II in accordance with GOST 15150.
& nbsp;
The main technical parameters of the switchgear are shown in Table 1.
Classification of cabinets is given in Table 2.
In case of double-row cabinet design, the switchgear is equipped with busbar bridges. Busbar bridges are only installed on the outermost cabinets. The distance between the fronts of the cabinets must be 2000, 2500 or 3000 mm. & Nbsp;
ООО Энергоприладпостач
Ukraine
Specify the price
Prefabricated chambers one-way service KSO 306 and busbar bridges SHM and SMR for them are intended for switchgear configuration voltage 6 or 10 kV AC frequency 50 Hz with isolated neutral. Type of climatic modification U3 by GOST15150. Normal operation of KSO is ensured when following conditions: 1. Height above sea level - no more than 1000 m; 2. Environment - non-explosive, not containing conductive dust, corrosive gases and vapors in concentrations that reduce the parameters of the KTP within unacceptable limits; 3. Wind speed up to 36 m / s (wind pressure speed up to 800 Pa); 4. Type of atmosphere - II in accordance with GOST 15150. The main circuits of the KSO consist of the following devices; 1. Autogas load switch VN-RA - chambers 03-06, 08.09 and 24; 2. Disconnector with grounding knives RV - chambers 01, 02, 07, 10, 11, 14P, 14L; 3.Vacuum circuit breaker BB / TEL or VR-1 with electromagnetic drive - 12V, 14V and 17V chambers. A set of protections is provided in the chambers - overcurrent protection, overcurrent cutoff, ground fault protection, voltage circuit monitoring, automatic transfer switch (ATS); 4. Voltage transformers - chambers 10 and 11; 5.Transformers for auxiliary needs - cameras 12V, 13V and 23. On request, active and reactive energy metering cabinets are supplied. With a two-row design, the switchgear is completed bus bridges with or without disconnectors (ШМР). Bus bridges are installed only on the outermost chambers. Distance between the facades of the chambers: 2000 mm (ШМР-1, ШМ-1); 2500 mm (ShMR-2, ShM-2); 3000 mm (ShMR-3, ShM-3); 3500 mm (ShMR-4, ShM-4). Connection of cameras to the external network - cable. The chambers are provided with all interlocks in accordance with regulatory documents. An example of ordering a KSO camera made according to scheme 05, with a rated voltage of 10 kV Chamber KSO 306-05 U3 TU U 31.2-14152239-002: 2006, An example of ordering a KSO chamber with a vacuum circuit breaker, made according to the 13 V circuit, with a nominal voltage of 10 kV Chamber KSO 306-13V U3 TU U 31.2-14152239-002: 2006, Example of ordering a busbar bridge with disconnectors with a distance between the facades of the chambers of 2500 mm Bus bridge SHMR-2 U3 TU U 31.2-14152239-002: 2006.
ООО Энергоприладпостач
Ukraine
Specify the price
Panels of switchboards SCHO-06 are designed to receive and distribute electrical energy of three-phase alternating current with a frequency of 50 Hz and voltage up to 660 V and to protect outgoing lines from overloads and short-circuit currents. Type of climatic modification U3 in accordance with GOST 15150. Normal operation of SCHO is provided under the following conditions: 1. Height above sea level - no more than 1000 m; 2. Environment - non-explosive, not containing conductive dust, corrosive gases and vapors in concentrations that reduce the parameters of the KTP within unacceptable limits; 3. Wind speed up to 36 m / s (wind pressure speed up to 800 Pa); 4. Type of atmosphere - II in accordance with GOST 15150. SCHO panels are manufactured in two versions according to the degree of protection (the first digit in the panel designation): 1 - open (degree of protection IP00 and only from the side of the facade - IP20); 2 - closed (degree of protection IP20 and only from the bottom side - IP00). According to the purpose, the panels are divided into introductory, sectional, distribution and auxiliary ones. Accessory panels include supervisory panels, metering cabinets, and end panels. When installing the panels in two rows, the switchgear is equipped with a busbar bridge with a distance between the facades of -1000, 1500 and 2000mm. The panels are equipped with the following equipment: 1. Introductory and sectional - automatic switches of withdrawable and fixed design and circuit breakers, 2. Distribution circuit breakers - withdrawable or fixed circuit breakers, RPS fuse switches or insulated switches with RBK or ARS fuses. On request, the products are completed with installations for reactive power compensation. Panels are assembled into transport groups up to 4 m long. Example of ordering an input panel SCHO of protection degree IP00 with a rated current of inputs 1600 A, made according to scheme 01 ShchO-06-1101 U3 panel TU U 31.2-14152239-004: 2006, Example of ordering a busbar bridge with a distance between the facades of the chambers of 1000 mm Bus bridge SHM-2 U3 TU U 31.2-14152239-004: 2006.
ООО Энергоприладпостач
Ukraine
Specify the price

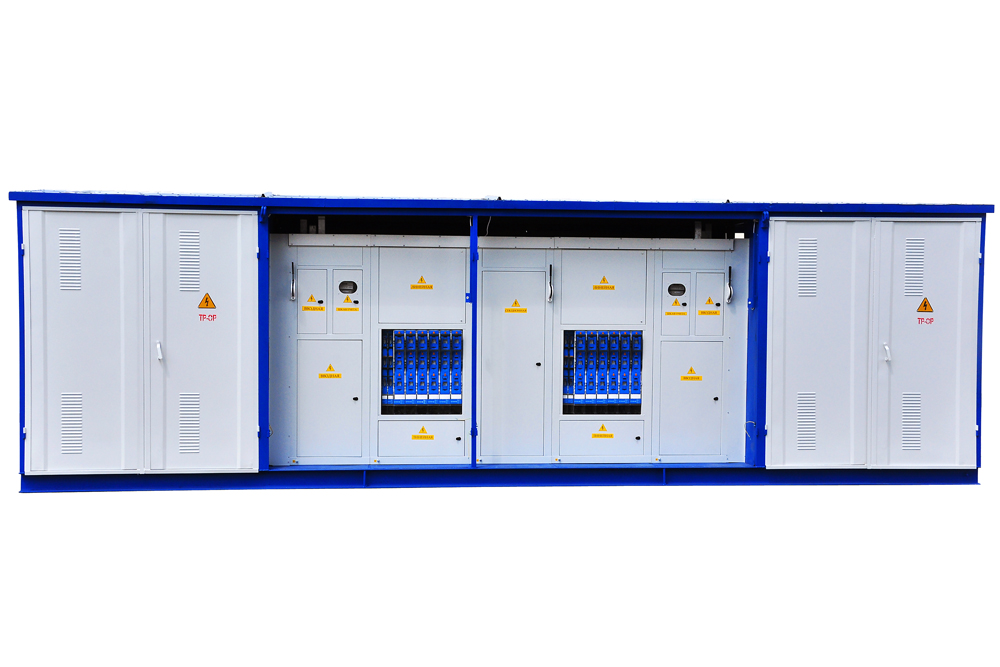

Complete transformer substations for urban networks of through-passage and dead-end type - KTPG with a capacity of 100-2500 kVA, HV voltage of 6 or 10 kV and LV voltage of 0.4 kV are designed to receive, convert and distribute electrical energy of three-phase alternating current with a frequency of 50 Hz in systems with a dead-grounded neutral transformer on the low voltage side. KTPG are designed to supply power to agricultural consumers, individual settlements and small industrial facilities in areas with a temperate climate (from -45 ° C to + 40 ° C). Type of climatic modification U1 in accordance with GOST15150. Normal operation of the KTP is ensured under the following conditions: 1. Height above sea level - no more than 1000 m; 2.Environment - non-explosive, not containing conductive dust, corrosive gases and vapors in concentrations that reduce the parameters of the KTP in unacceptable limits; 3. Wind speed up to 36 m / s (wind pressure speed up to 800 Pa); 4. Type of atmosphere - II in accordance with GOST 15150. High-voltage input - air or cable, outgoing line branches - air or cable. Also, KTPG are manufactured as one-transformer and two-transformer (with sectioning for high and low voltage). Circuit breakers are installed on the LV side. Their number and rated current are shown in the table. The package of delivery of the KTP includes UVN (air inlet) and LVDN cabinets, a power transformer, an outdoor disconnector RLNDz-10/630 (on request). On request, the KTP can provide street lighting lines, which are switched on automatically by a signal from the built-in relay and by installations for reactive power compensation. ... Example of ordering a single-transformer KTP with a power of 630 kVA with a network voltage of 6 kV HV cable gland and LV cable gland KTPG-2K- 630/6 / 0.4 U1 TU U 3.2-14152239-001: 2004. Example of ordering a two-transformer KTP with a capacity of 250 kVA and a network voltage of 10 kV HV air inputs and LV cable glands
ООО Энергоприладпостач
Ukraine
Specify the price

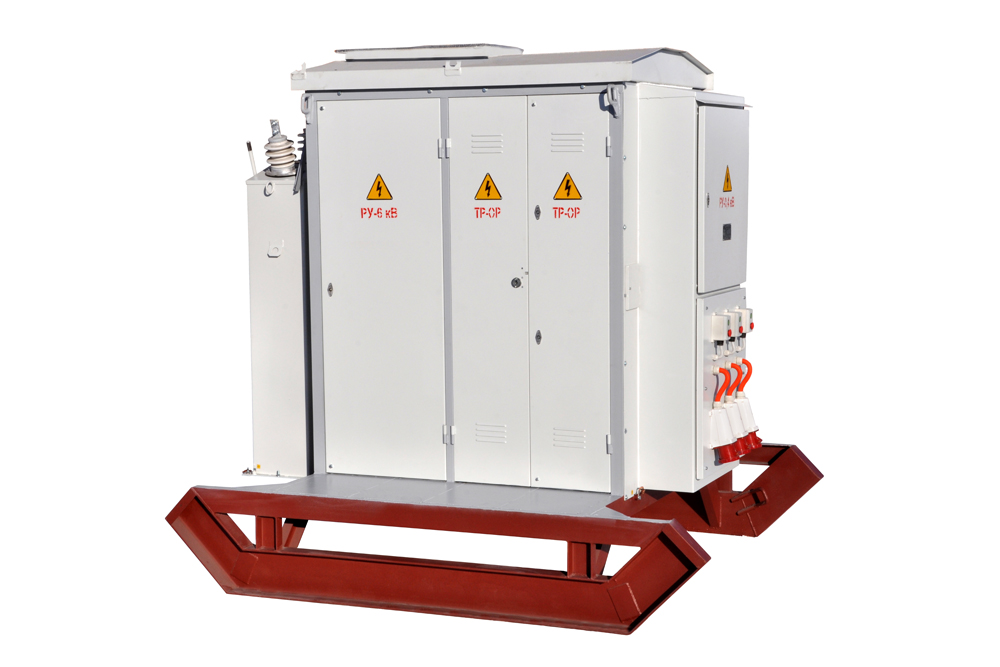

Complete transformer substations dead-end - KTP-1 with a capacity of 25 - 630 kVA, HV voltage 6 or 10 kV and LV voltage 0.4 kV are intended for receiving, converting and three-phase electrical power distribution alternating current with a frequency of 50 Hz in systems with solid-grounded neutral of the transformer on low voltage side. KTP-1 are intended for power supply of agricultural, industrial consumers, individual communities points and small industrial facilities in areas with a temperate climate (from -45 ° С to + 40 ° С). KTP-1 is installed on the simplest concrete site. Type of climatic modification U1 in accordance with GOST15150. Normal operation of the KTP is ensured under the following conditions: 1. Altitude above sea level - no more than 1000 m; 2. Environment - non-explosive, not containing conductive dust, corrosive gases and vapors in concentrations that reduce the parameters of the KTP within unacceptable limits; 3. Wind speed up to 36 m / s (wind pressure up to 800 Pa); 4. Type of atmosphere - II in accordance with GOST 15150. High-voltage input - air or cable, outgoing line branches - air or cable. Dead-end KTP-1 are manufactured as one-transformer and two-transformer (with high and low voltage sectioning). Circuit breakers are installed on the LV side. Their number and rated current are shown in the table. The package of delivery of the KTP includes UVN (air inlet) and LVDN cabinets, a power transformer, an outdoor disconnector RLNDz-10/630 (on request). On request, the KTP can provide street lighting lines, which are switched on automatically by a signal from the built-in relay.
ООО Энергоприладпостач
Ukraine
Specify the price

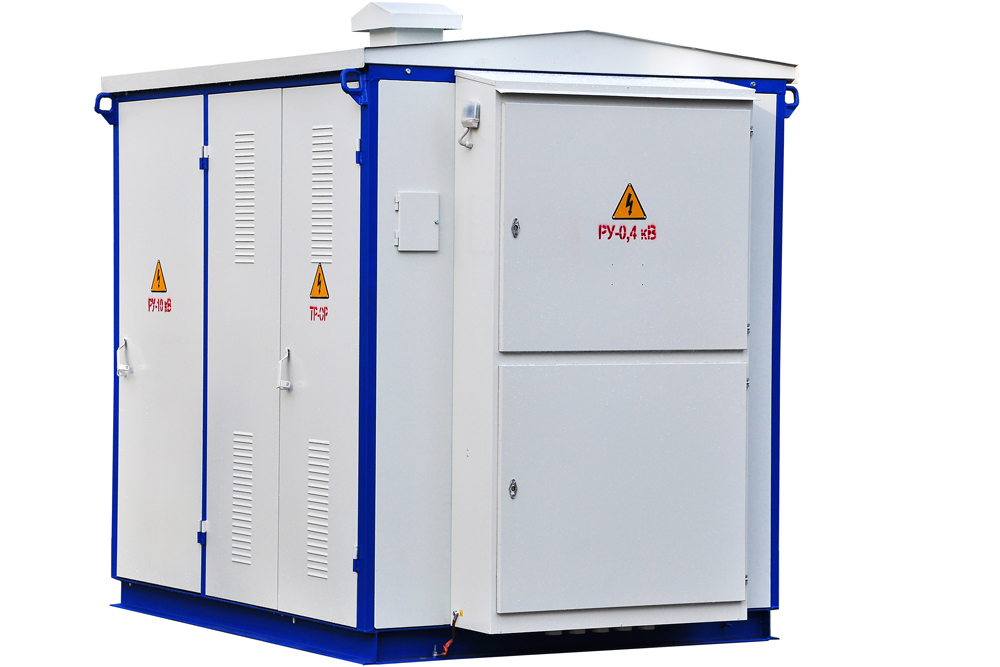

Transformer substations complete dead-end - KTP-2 power 25-2500 kVA, voltage HV 6 or 10 kV and LV voltage 0.4 kV intended for reception, transformation and distribution electrical energy three-phase alternating current with a frequency of 50 Hz in systems with grounded neutral transformer on the low side voltage. KTP-2 are intended for power supply of agricultural consumers, individual settlements and small industrial facilities in areas with a temperate climate (from -45 ° C to + 40 ° C). KTP-2 is installed on the simplest concrete site. Type of climatic modification U1 in accordance with GOST15150. Normal operation of the KTP is ensured under the following conditions: 1. Height above sea level - no more than 1000 m; 2. Environment - non-explosive, not containing conductive dust, corrosive gases and vapors in concentrations that reduce the parameters of the KTP within unacceptable limits; 3. Wind speed up to 36 m / s (wind pressure speed up to 800 Pa); 4. Type of atmosphere - II in accordance with GOST 15150. High-voltage input - air or cable, outgoing line branches - air or cable. Passage KTP-2 are manufactured as one-transformer and two-transformer (with sectioning for high and low voltage). Circuit breakers are installed on the LV side. Their number and rated current are shown in the table. The package of delivery of the KTP includes UVN (air inlet) and LVDN cabinets, a power transformer, an outdoor disconnector RLNDz-10/630 (on request). On request, the KTP can provide street lighting lines, switched on automatically by the signal of the built-in relay and by installations for reactive power compensation.
ООО Энергоприладпостач
Ukraine
Specify the price
Complete pole transformer substations with a capacity of 25-250 kVA of three-phase alternating current with a frequency of 50 Hz with a voltage of 10 (6) \ 0.4 kV are single-transformer substations of a dead-end type of outdoor installation and are used to supply power to agricultural consumers, individual settlements and small industrial facilities in areas with temperate climate (from -45 ° С to + 40 ° С). Type of climatic modification U1 in accordance with GOST15150. Normal operation of the KTPS is ensured under the following conditions: 1. Altitude above sea level - no more than 1000 m; 2. Environment - non-explosive, not containing conductive dust, corrosive gases and vapors in concentrations that reduce the parameters of the KTP within unacceptable limits; 3. Wind speed up to 36 m / s (wind pressure up to 800 Pa); 4. Type of atmosphere - II in accordance with GOST 15150. KTPS has the following components: 1. Device on the high voltage side (UHV); 2. Transformer of power outdoor installation three-phase or single-phase transformer of OMP-10 or 6kV type; 3. Switchgear on the low voltage side (LVSN) with circuit breakers on outgoing lines and street lighting line.
ООО Энергоприладпостач
Ukraine
Specify the price
Complete transformer substations with capacity 25-250 kVA three-phase alternating current with a frequency of 50 Hz voltage 10 (6) \\ 0.4 kV are single-transformer substations of dead-end type outdoor installation and serve for power supply agricultural consumers, individual populations points and small industrial facilities in areas with a temperate climate (from -45 ° С to + 40 ° С). Type of climatic modification U1 in accordance with GOST15150. Normal operation of the KTPM is ensured when following conditions: 1. Altitude above sea level - no more than 1000 m; 2. Environment - non-explosive, not containing conductive dust, corrosive gases and vapors in concentrations that reduce the parameters of the KTP within unacceptable limits; 3. Wind speed up to 36 m / s (wind pressure up to 800 Pa); 4. Type of atmosphere - II in accordance with GOST 15150. KTPM has the following components: 1. Device on the high voltage side (UHV); 2. Transformer of power outdoor installation three-phase or single-phase transformer of OMP-10 or 6kV type; 3. Switchgear on the low voltage side (LVSN) with circuit breakers on outgoing lines and street lighting line.
ООО Энергоприладпостач
Ukraine
Specify the price
TM oil transformers are produced with a capacity from 25 to 1000 kVA for a rated voltage of the primary winding of 6 or 10 kV and a rated voltage of the secondary winding of 0.4 or 0.23 kV with a frequency of 50 Hz. Scheme and group of connections of windings U / Un-0 or D / Un-11. Type of climatic modification U1 in accordance with GOST 15150. Normal operation of transformers is ensured under the following conditions: 1. Height above sea level - no more than 1000 m; 2. Environment - non-explosive, not containing conductive dust, corrosive gases and vapors in concentrations that reduce the parameters of the KTP within unacceptable limits; 3. Wind speed up to 36 m / s (wind pressure speed up to 800 Pa); 4. Type of atmosphere - II in accordance with GOST 15150; 5. Ambient temperature - from -45 ° С to + 40 ° С. Voltage regulation is carried out by switching without excitation (PBV) when the transformer is disconnected from the mains, both on the high and low voltage sides. The voltage is regulated from the high voltage side by ± 2x2.5% of the nominal value. Outdoor transformer bushings, removable, porcelain bushing insulators. At currents of 630 and 2500A, contact clamps with a paddle are attached to the current-carrying rods, which ensures the connection of a bus or cable lugs. The oil conservator ensures the presence of oil in all operating modes of the transformer and fluctuations in ambient temperature, and also has a built-in air dryer with an oil seal. A thermometer is installed on the lid to measure the temperature of the upper layers of oil. Transformers with power from 400 to 2500 kVA are equipped with rollers. Transformers comply with GOST 116777 and technical specifications TU U31.1-31617591-001-1005.
