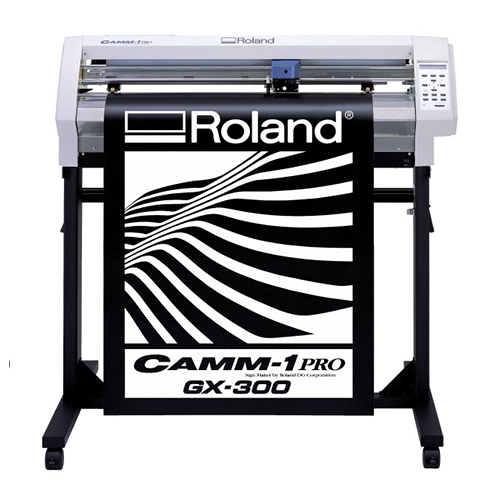

Product Description Cut precision graphics from vinyl, window tint, twill, sandblast mask and more 30″, 40″, 54″ and 64″ models available Roland CutStudio software included to get started right out-of-the-box Combining precision and performance with Roland’s legendary reliability, CAMM-1 Pro GX Series vinyl cutters are the ideal choice for contour cutting a wide range of materials, including vinyl, heat transfers and printed graphics. With speed, accuracy and powerful downforce, GX vinyl cutters deliver the unstoppable performance and outstanding results busy shops need to produce high-quality signs, apparel, vehicle graphics and more. Distinguishing Features 36”, 46”, 54” and 64” models available Cut at up to 33 inches per second with high-precision Max down force of 350 grams CutStudio software included GX-640 includes overlap cutting to enable cutting of thicker substrates such as diamond-grade reflective vinyl Three-Year Warranty More Power, Finer Details GX vinyl cutters use digital servomotors for maximum accuracy and cutting speeds up to 33 inches per second. These professional-grade cutters also feature a curve-smoothing function that allows precise cutting of fine details, even at high speeds. Downforce of up to 350 grams ensures high cutting performance even on thicker substrates. The result is faster production and better-looking graphics on a wide variety of materials, day-in and day-out. CutStudio Included Bundled with any GX Series cutter, Roland CutStudio software allows designers to quickly and easily enlarge, reduce, re-position, rotate and mirror images. BMP, JPG, STX, AI, and EPS file formats are all supported. Optional Film Design Packed with design features, Film Design supports all brands of automotive window film, offering access to more than 2,000 window film pattern kits for use with over 1,000 different vehicles. Even More Advanced Features Included with the GX 640 OVERCUT for perfect corner cuttingThe GX-640 easily cuts vinyl and polyurethane materials, plus a myriad of textile fabrics for decorated apparel. The OVERCUT feature cuts thicker materials by adding a margin of 1mm to the beginning and end of a vector. This ensures precise corners and accurate cuts.OVERLAP for cutting thicker materialsFor the thickest and most difficult materials, the GX-640 offers an OVERLAP feature that can cut the same graphic up to 11 times, applying steady pressure for precise, complete cuts. Three-Year Trouble-Free Warranty Roland offers unmatched reliability and support with the best post-sales care in the industry and an unprecedented Three-Year Trouble-Free Warranty included with all GX cutters. Roland DG proudly holds international ISO certifications as recognition of exceptional quality. MODEL GX-300 GX-400 GX-500 GX-640 Cutting method Media-movement method Driving method Digital control servo motor Friction feed/Digital control servo motor Maximum cutting area 29 x 984-1/8″(737 x 24,998mm) 39 x 984-1/8″(1000 x 24,998mm) 47 x 984-1/8″(1195 x 24,998mm) Width: 65″ (1651 mm) Acceptable media width 2 to 36″(50 to 915mm) 3-1/2 to 46″(90 to 1178mm) 3-1/2 to 54″(90 to 1372mm) 5-1/16″ to 72.5″ (130 mm to 1842 mm) Maximum cutting speed During cutting: 33ips (850mm/sec.) [in all directions]During tool-up: 47 ips (1202mm/sec) [in 45º direction] During cutting: 33.5″/sec (850 mm/sec) (in all directions)During tool-up: 47″/sec (1202 mm/sec) Cutting force 20 to 350 gf 1 to 85 cm/sec (in increments of 1 cm/sec), 20 to 350 grams force (increments of 10 grams) > Mechanical resolution 0.00049″/step (0.0125mm/step) 0.000137″/step (0.0035 mm/step) Software resolution 0.00098″/step (0.025mm/step) 0.000984″/step (0.025 mm/step) Distance accuracy Error of less than ± 0.2% of distance traveled, or 0.00039 (0.1mm), whichever is greater Error of less than 0.2% of distance traveled, or 0.00394″ (0.1 mm), which is greater Repetition accuracy 0.1mm or less (excluding stretching/contraction of the material)Range for assured repetition accuracyFor materials with a width exceeding 24″ (610mm): Length 157-7/16″ (4000mm) (GX-400/500 only)For materials with a width of 24″ (610mm) or less: Length 314-15/16″ (8000mm) 0.004″ (0.1 mm) or less Interface Serial (RS-232C compatible), USB (Rev. 1.1) Serial (RS-232C-compatible), USB (Rev 1.1) Buffer size 8MB (2MB for re-plot buffer) 2 MB (buffer size: 8 MB) Power supply AC 100V to 240V +/- 10% 50/60Hz 1.2A AC 100V to 240V =/- 10% 50/60Hz 1.1A AC 100V to 240V ±10% 50/60Hz 1.2A Power consumption Approx. 95W Approx. 100WApprox. 100W Acoustic noise level Cutting mode: under 62 dB (A) Standby Mode: under 40 dB (A) (According to ISO 7779) Dimensions with stand 45-1/16(W) x 28-5/8(D) x 43-13/16″(H)1144(W) x 727(D) x 1113mm (H) 55-3/8(W) x 28-5/8(D) x 43-13/16″(H)1407(W) x 727(D) x 1113mm(H) 63-1/16(W) x 28-5/8(D) x 43-13/16(H)1602(W) x 727(D) x 1113mm (H) 83-1/4 (W) x 28-5/8 (D) x 43-13/16 (H) in (2155 (W) x 727 (D) x 1113 (H) mm) Weight with stand 97lb. (44 kg) 112.4lb. (51 kg) 121.2 lb. (55 kg) 141.1 lb (64 kg) Operating temperature 41 to 104F (5 to 40C) Operating humidity 35 to 80% (non-condensing) Standard accessories Power cord, blade, blade holder, alignment tool, cable clamp, replacement blade for separating knife, Roland Software Package CD-ROM (CutStudio design software, plug-ins for CorelDraw 10/11/12 and Adobe Illustrator 9/10/CS), startup guide, user manual Power cord, blade holder (XD-CH2), pin, blade, blade (ZEC-U5022), alignment tool, cable clamp, replacement blade for sheet cutter, USB cable, Roland software CD-ROM, setup guide, user’s manual
